Features

• Electrifying sound with AI Sound Boost
• Futuristic Lightshow
• Auracast Multi-Speaker Linking
• Mic, Guitar & DJ Inputs
• IPX4 Splash Proof

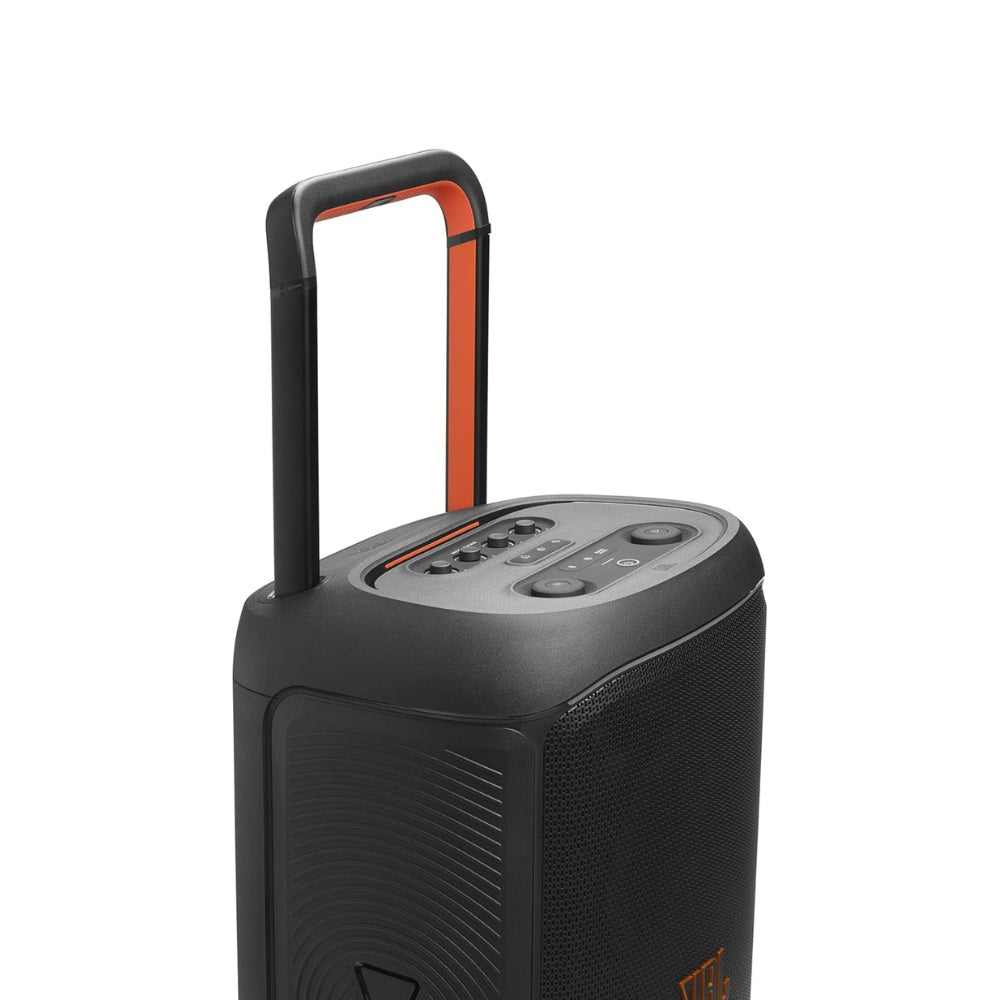

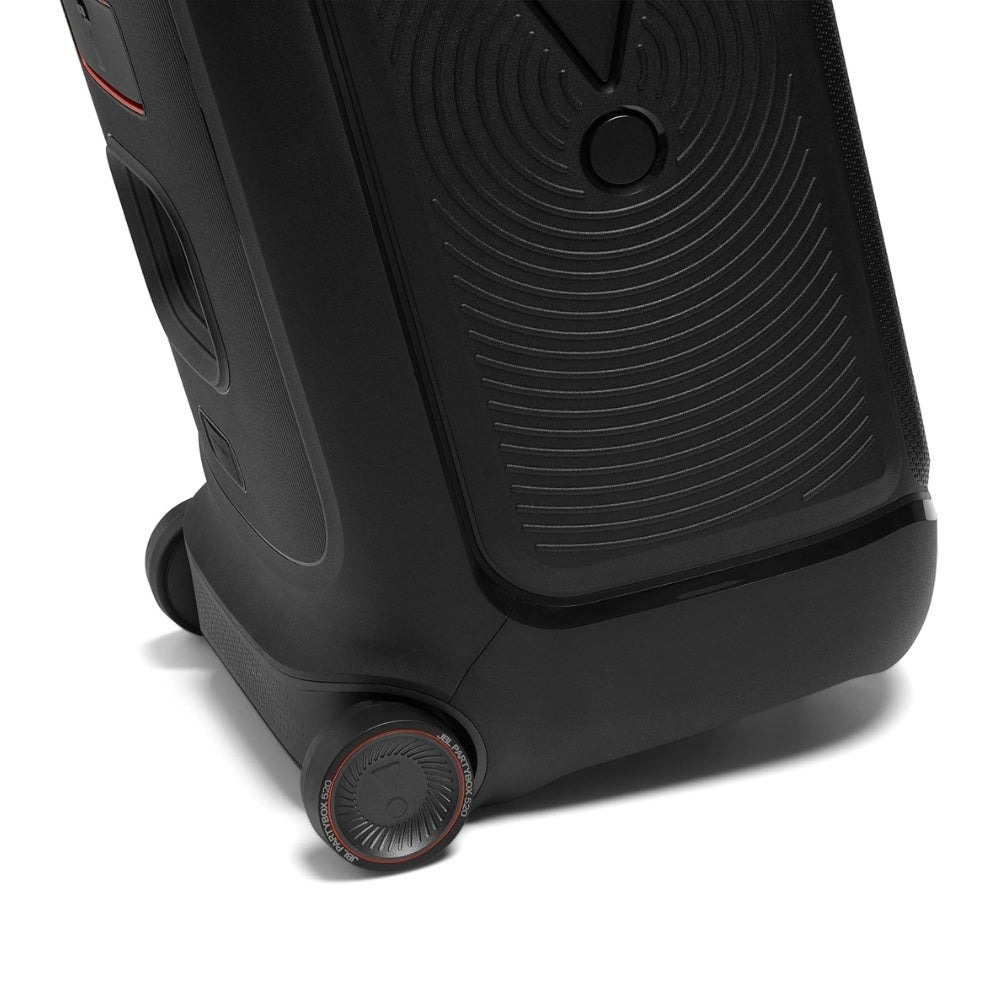

• Built-in Wheels & Telescopic Handle
• Up to 15 hours of play time

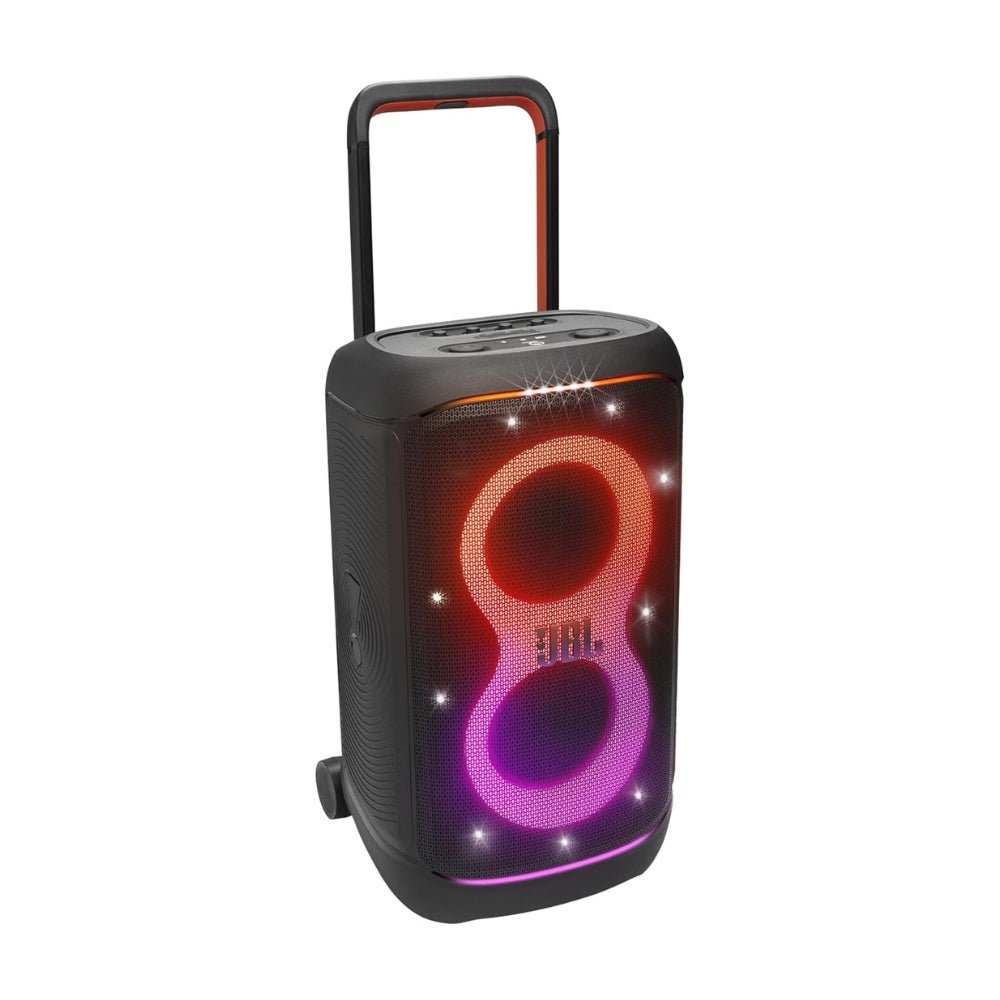

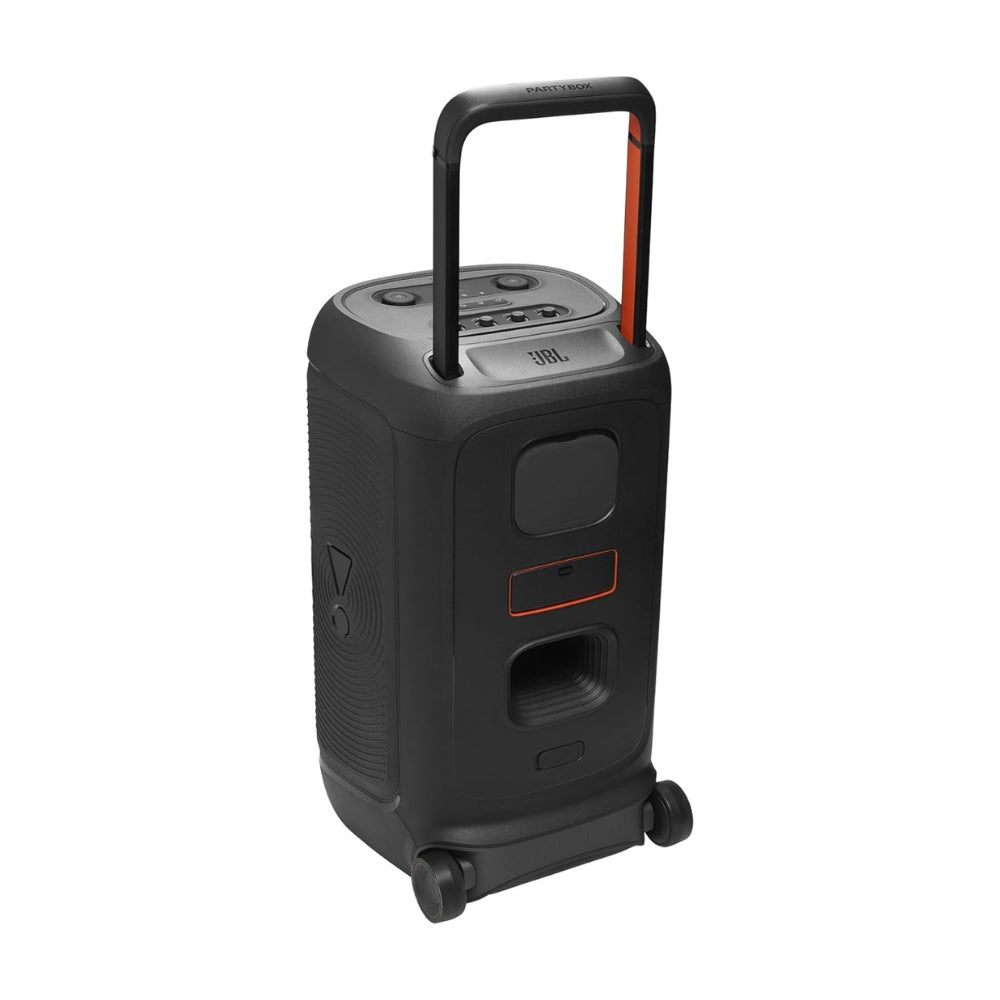

JBL PartyBox 520

Electrifying sound with AI Sound Boost

Powerful sound to make your playlist shine. This sound is made to match your energy, so you feel like you're hearing each song performed live. Turn it up louder and your music will still sound great, as our new proprietary tech, AI Sound Boost analyzes your music in realtime to deliver maximum acoustic performance with less distortion

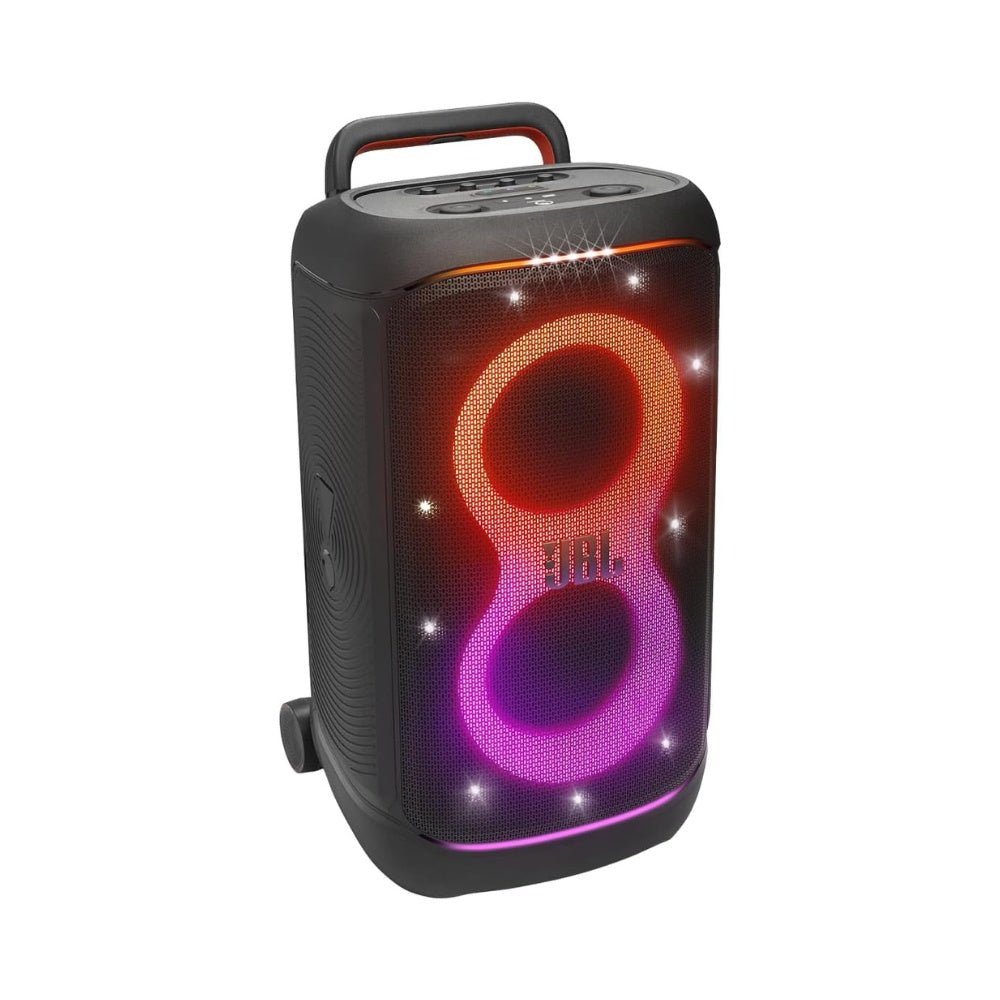

Futuristic lightshow

Did someone say lightshow? Dance the night away with glowing light patterns and strobe effects that make any event a whole mood

Up to 15 hours of play time

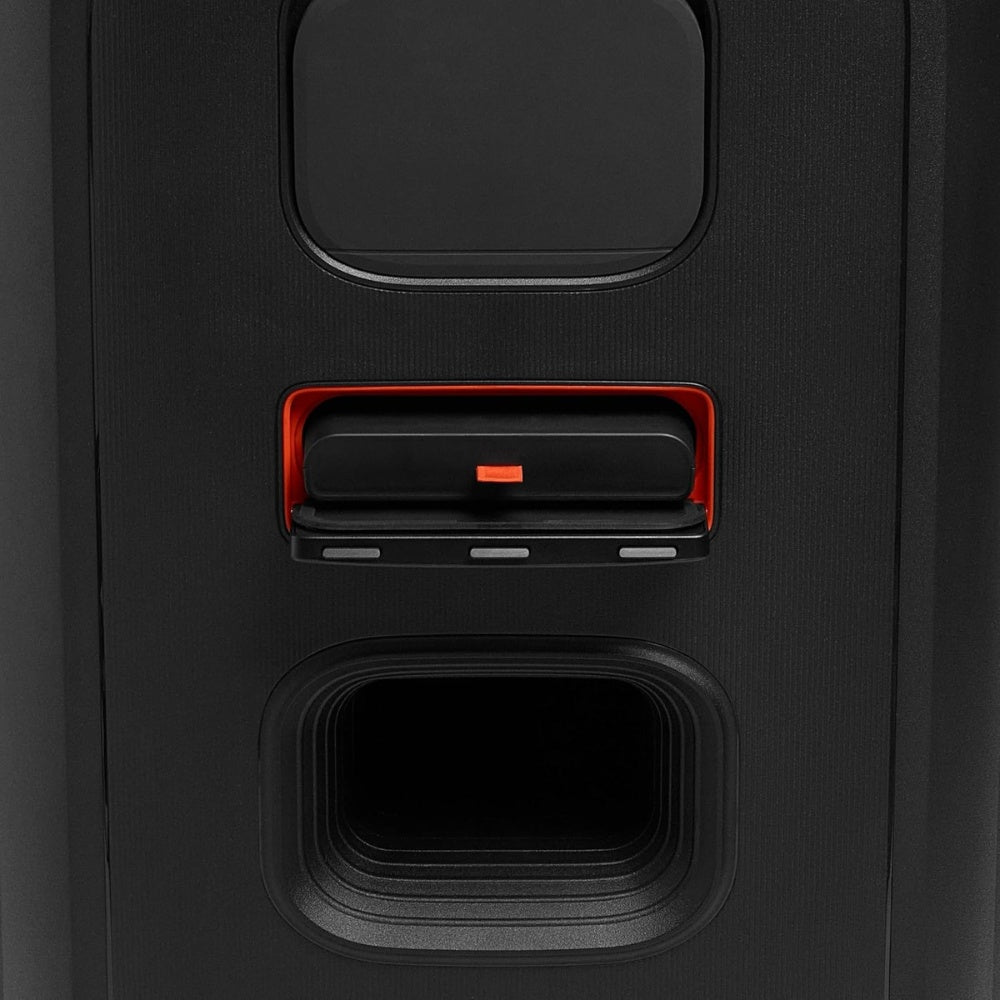

Keep the good vibes going on a single charge with up to 15 hours play time. And if 15 hours of nonstop jams isn’t enough, simply swap out the replaceable battery to keep the music going. Or charge for 10 minutes and get an extra 2 hours of play time. *Additional replaceable battery sold separately

Specs

General Specifications

Power input 100 – 240 V ~ 50 / 60 Hz

Output power 400 W RMS (IEC60268)

Audio Specifications

Transducer 2 x 7.5 inch (208 mm) woofers, 2 x 1 inch (25 mm) dome tweeters

Frequency response 40 Hz – 20 kHz

Signal-to-noise ratio > 80dB

Dimensions

Product dimensions (W x H x D) 415 x 769 x 369 mm / 16.34' x 30.28' x 14.53'

Net weight 25.5 kg / 56.2 lbs

Packaging dimensions (W x H x D) 489 x 854 x 480 mm / 19.25' x 33.62' x 18.9'

Gross weight 29.4 kg / 64.8 lbs

Control and Connection Specifications

Aux-In 250 mV RMS (3.5 mm connector)

Mic-In 20 mV RMS

Guitar-In / Line-In 100 mV RMS

Bluetooth/USB input -12 dBFS

Bluetooth® version 5.4

Bluetooth® profile A2DP V1.4, AVRCP V1.6

Bluetooth® transmitter frequency range 2.4 GHz - 2.4835 GHz

Bluetooth® transmitter power ≤ 18 dBm (EIRP)

Bluetooth® transmitter modulation GFSK, π/4 DQPSK, 8DPSK

USB format FAT16, FAT32

Supported formats .MP3, .WAV, .WMA, .FLAC (not available for EMEA region)

USB-C charge out PDO (5 V / 3 A, 9 V / 3 A, 15 V / 2 A, 20 V / 1.5 A), PPS (5 - 11 V / 2.7 A, 5 - 16 V / 1.85 A)

Cable type AC power cable (type varies by regions)

Cable length 2.0m/6.6ft

Battery

Battery type JBL BATTERY 600, Li-ion 99.02 Wh (equivalent to 21.6 V / 4584 mAh)

Battery charge time 3 hours (speaker off mode)

Music play time up to 15 hours (varies by volume level and audio content)

What's in The Box?

1 x JBL PartyBox 520

1 x Quick-start guide

1 x Safety Instruction and Warranty Card

AC power cord - quantity and plug type vary by regions
