Features

• 11.1.4 channel soundbar with detachable surround speakers
• MultiBeam, Dolby Atmos® and DTS:X®
• 12” Wireless subwoofer
• PureVoice Dialogue Enhancement Technology
• 1170W output power
• Standalone Bluetooth Speaker
• HDMI eARC with 4K Dolby Vision Passthrough

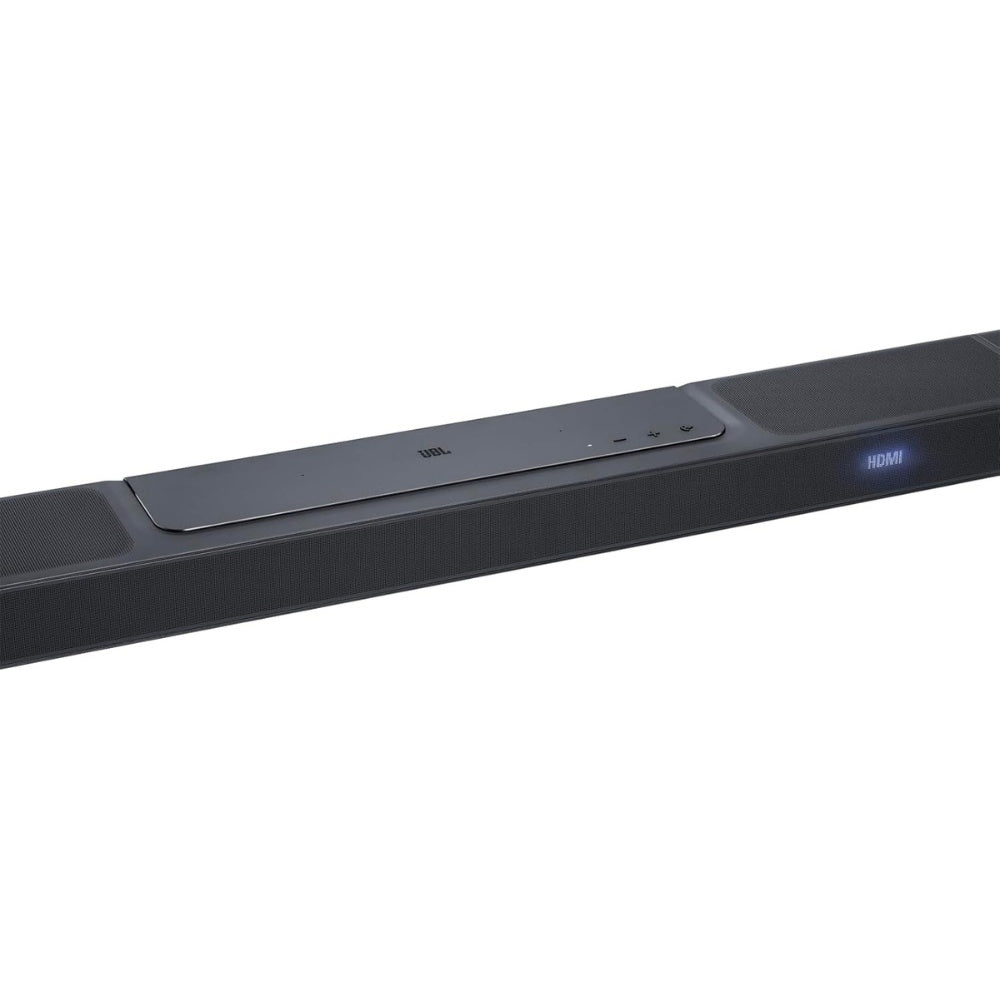

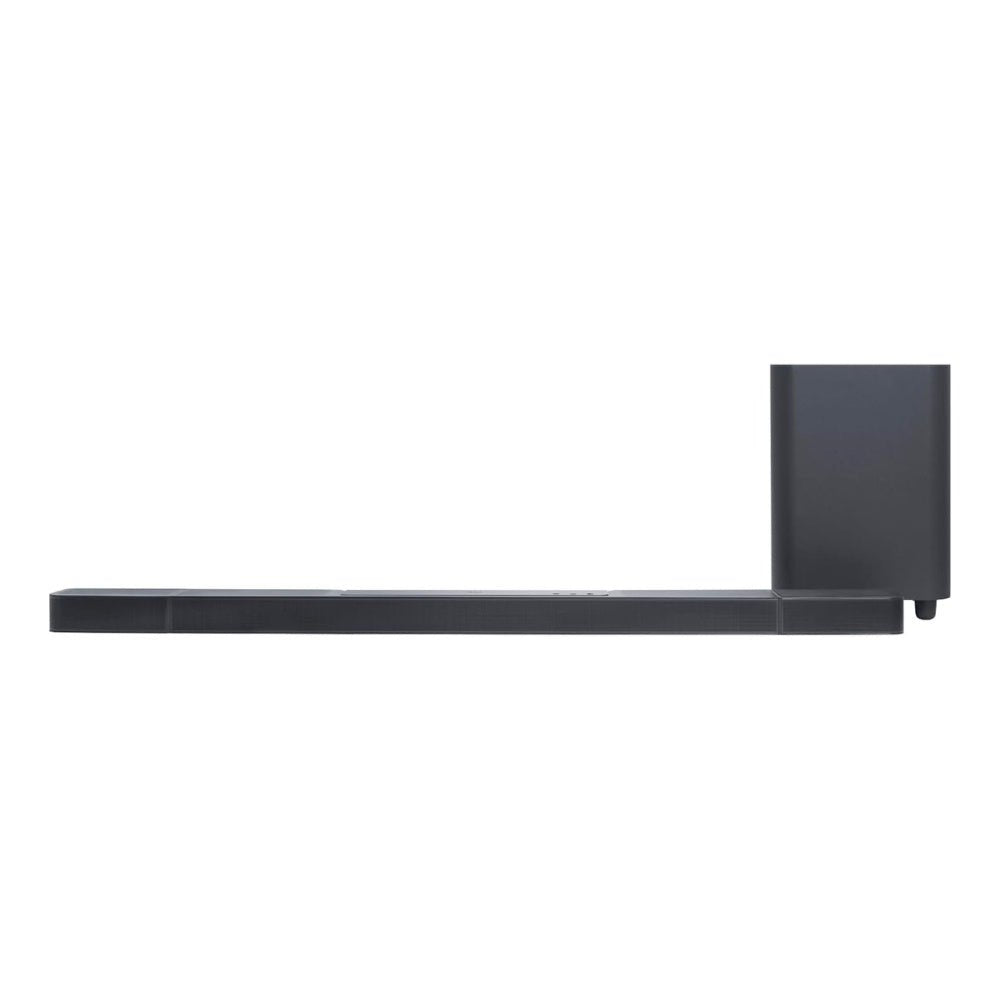

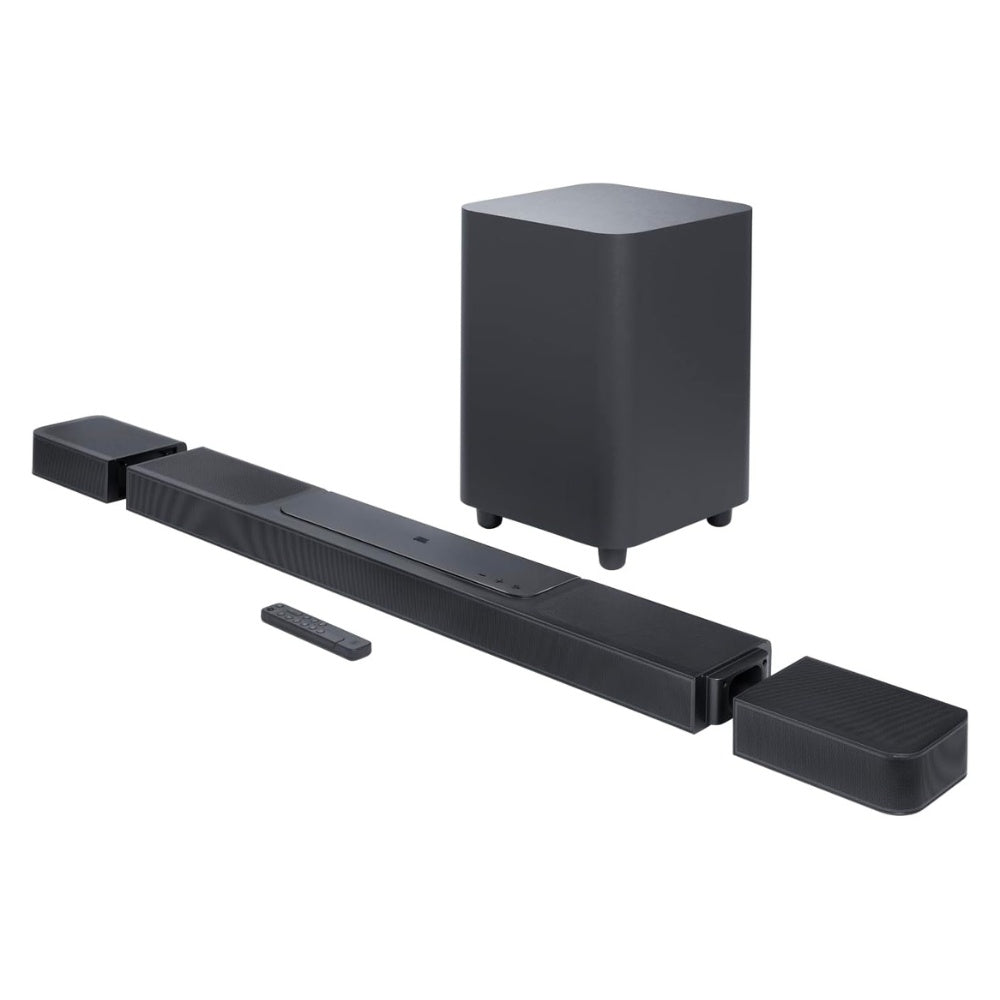

JBL Bar 1300 11.1.4 Channel Soundbar with Detachable Surround Speakers

True Dolby Atmos®, DTS:X, and MultiBeam™ Surround Sound

Immerse yourself in theater-quality 3D sound. With four up-firing drivers in the main bar and two more in the detachable speakers, the JBL Bar 1300X delivers true Dolby Atmos® and DTS:X together with MultiBeam™ for an enhanced 3D surround sound experience

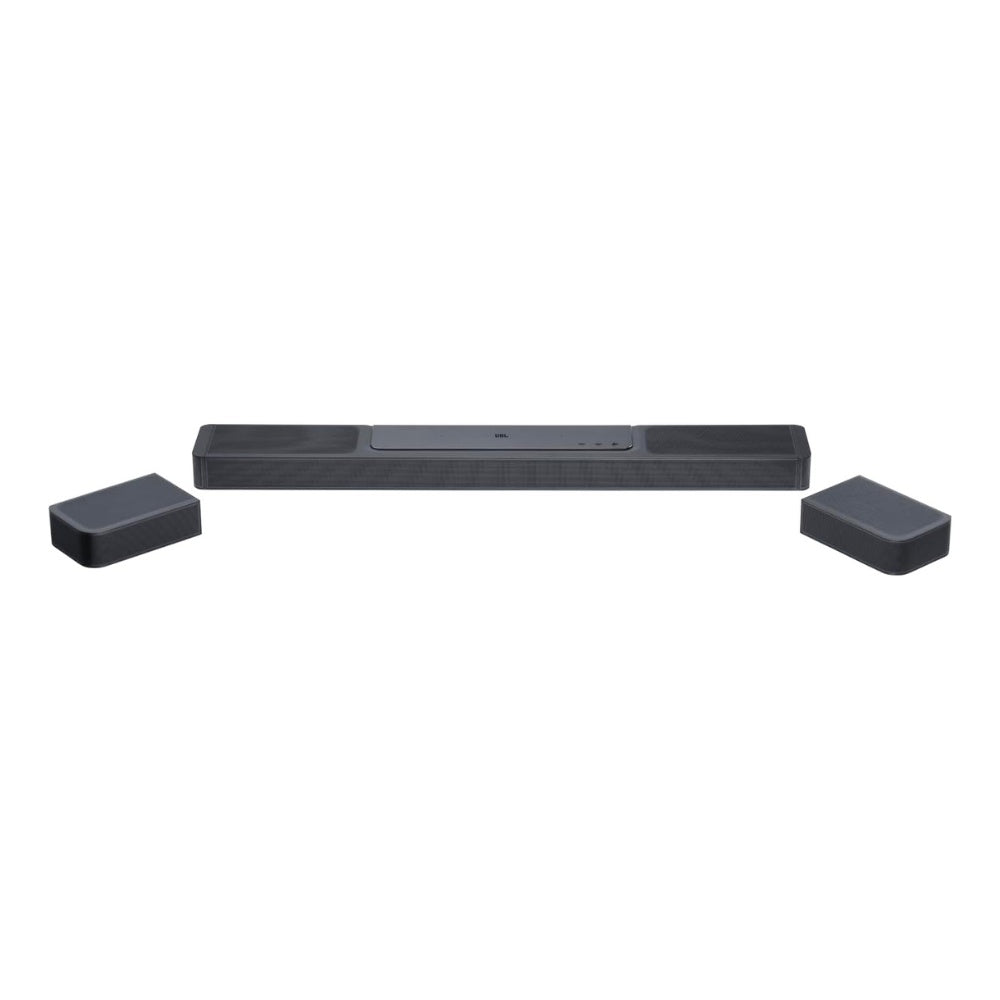

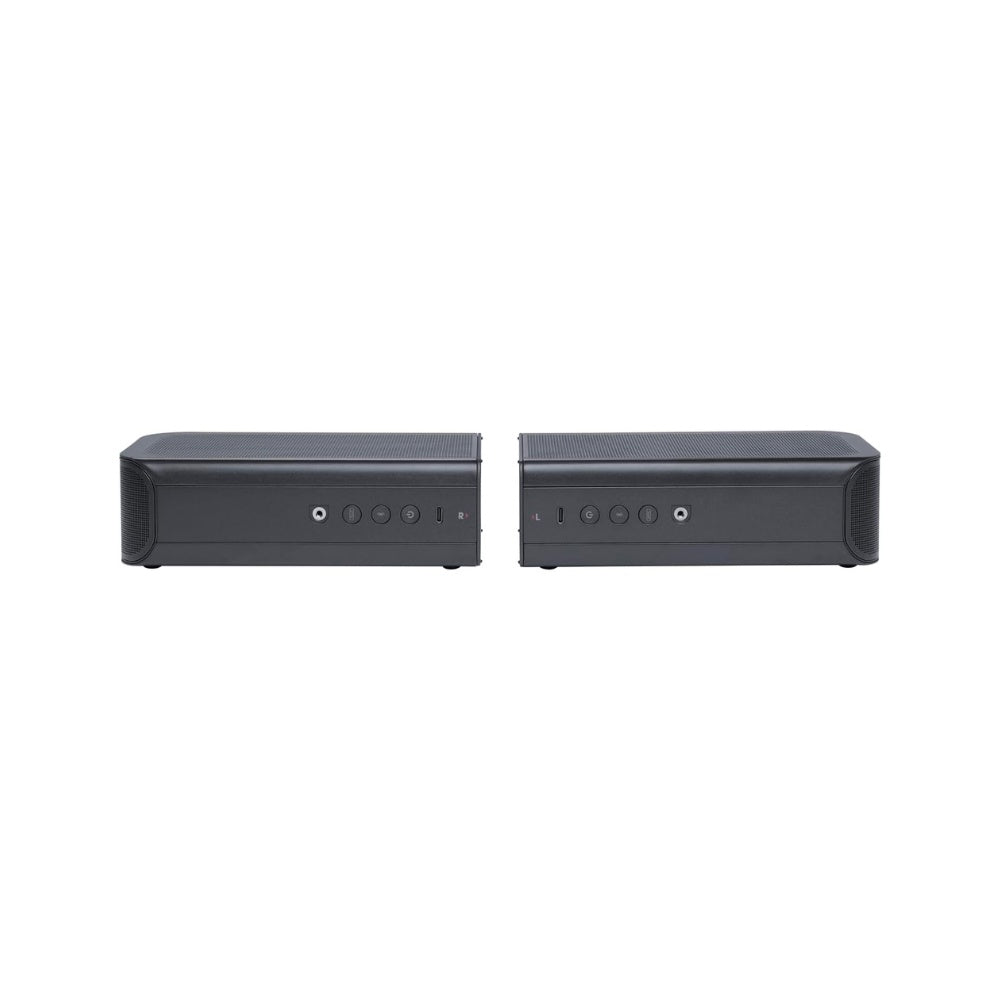

Real surround sound with detachable surround speakers

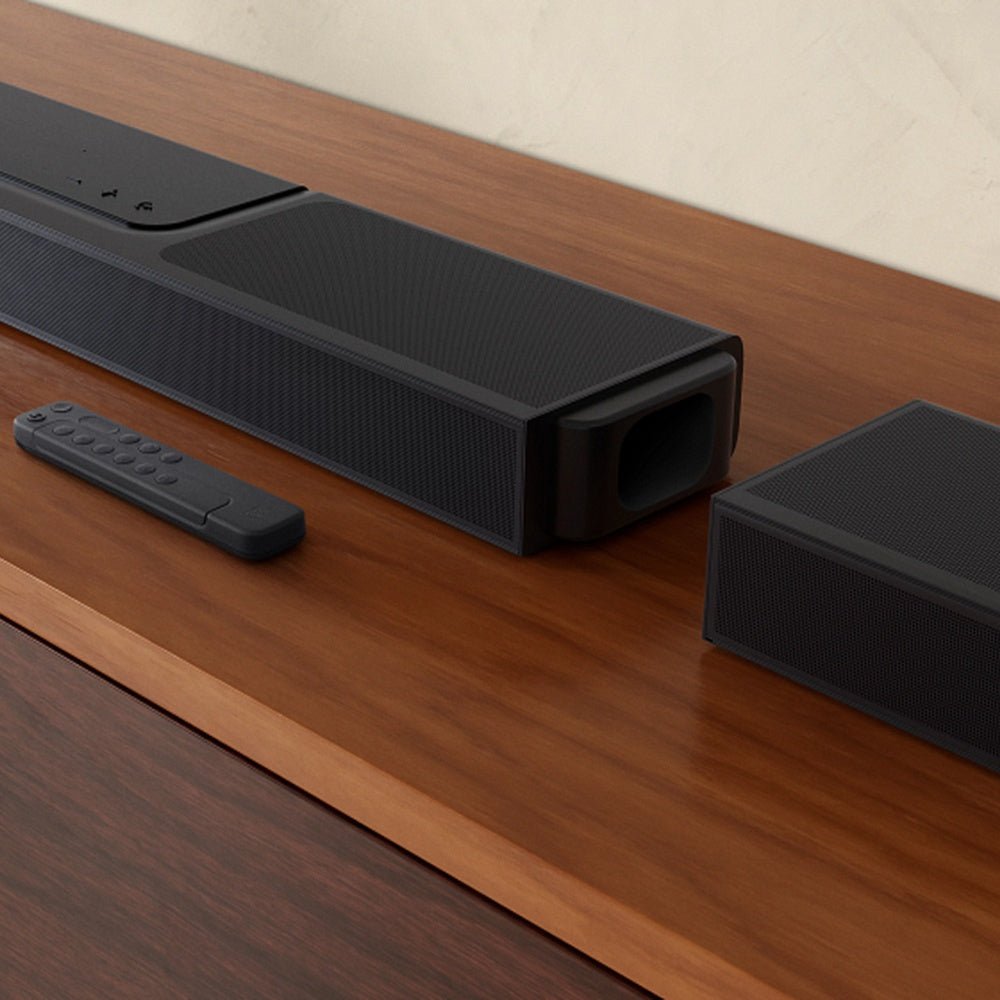

Enjoy real surround sound without the hassle of extra wires and power connections. Just place the two detachable battery-powered surround speakers behind you and get swept away in amazing audio

Built-In Wi-Fi with AirPlay, Alexa Multi-Room Music and Chromecast built-in™

Get ready to explore. Access over 300 online music streaming services through AirPlay, Alexa MRM and Chromecast built-in™. Enjoy all of your favorite audio content, Internet radio, and podcasts in high definition. The Wi-Fi connection also allows automatic software updates, so you can always enjoy the latest features

Specs

General Specifications

Sound system 11.1.4 channel

Power supply 100 - 240V AC, ~ 50/60Hz

Networked standby power < 2.0W

Operating temperature 0°C - 45°C

Audio Specifications

Total speaker power output (Max @THD 1%) 1170W

Soundbar output power (Max @THD 1%) 650W

Surround speaker output power (Max @THD 1%) 2x 110W

Subwoofer output power (Max. @THD 1%) 300 W

Soundbar transducer 6x (46x90)mm racetrack drivers, 5x 0.75' (20mm) tweeters, 4x 2.75' (70mm) up-firing full-range drivers

Surround speaker transducer (46x90)mm racetrack driver, 0.75' (20mm) tweeter, 2.75' (70mm) up-firing full-range driver, 2x (48x69)mm rounded rectangle Passive Radiators

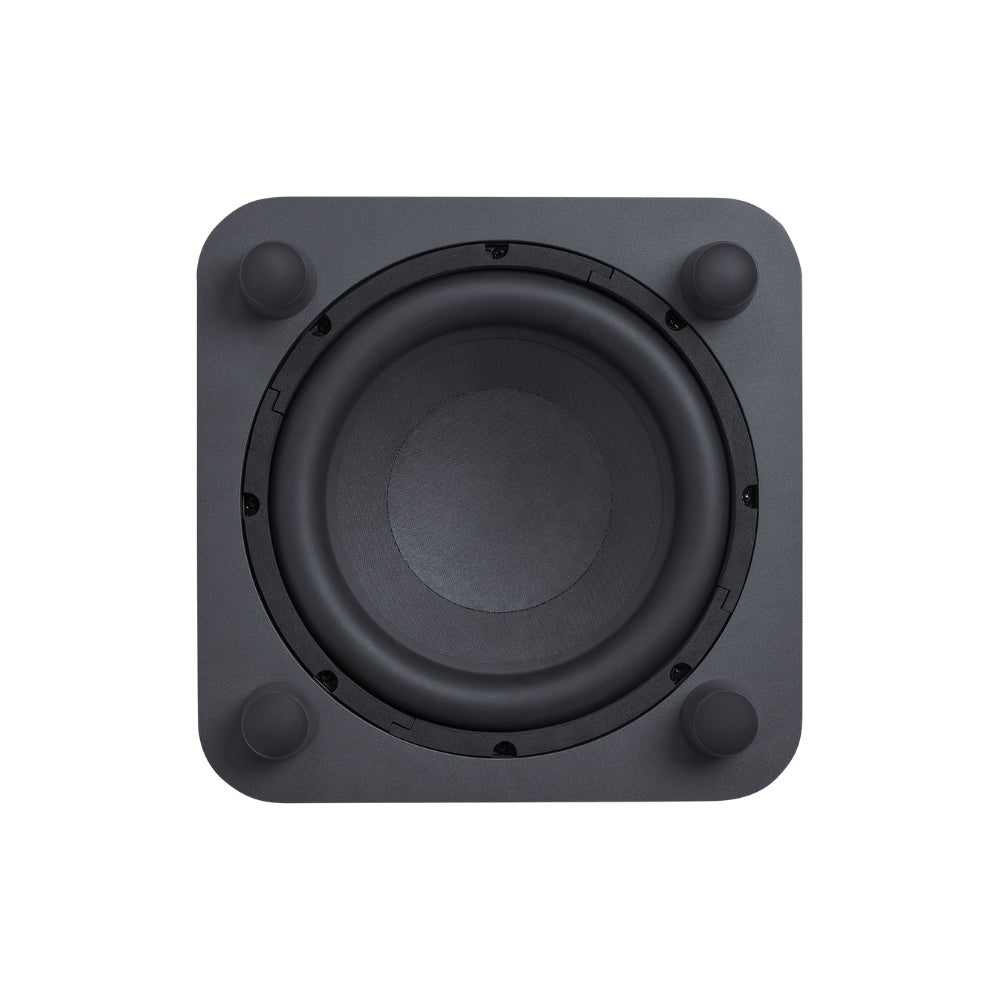

Subwoofer transducer 12” (311mm)

Frequency response 33Hz - 20kHz (-6dB)

Audio inputs 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Total soundbar dimensions (W x H x D) 1376 x 60 x 139 mm / 54.2' x 2.4' x 5.5'

Main soundbar dimensions (W x H x D)1000 x 60 x 139 mm / 39.4' x 2.4' x 5.5'

Detachable surround speaker dimensions (each) (W x H x D) 202 x 60 x 139 mm / 8' x 2.4' x 5.5'

Subwoofer dimensions (W x H x D) 366 x 481 x 366 mm / 14.4' x 18.9' x 14.4'

Soundbar weight 4.3kg / 9.5 lbs

Detachable surround speaker weight (each) 1.25 kg / 2.75 lbs

Subwoofer weight 15.65 kg / 34.5 lbs

Packaging dimensions (W x H x D) 450 x 1135 x 549 mm/ 17.7' x 44.7' x 21.6'

Packaging Weight 27kg / 59.50 lbs

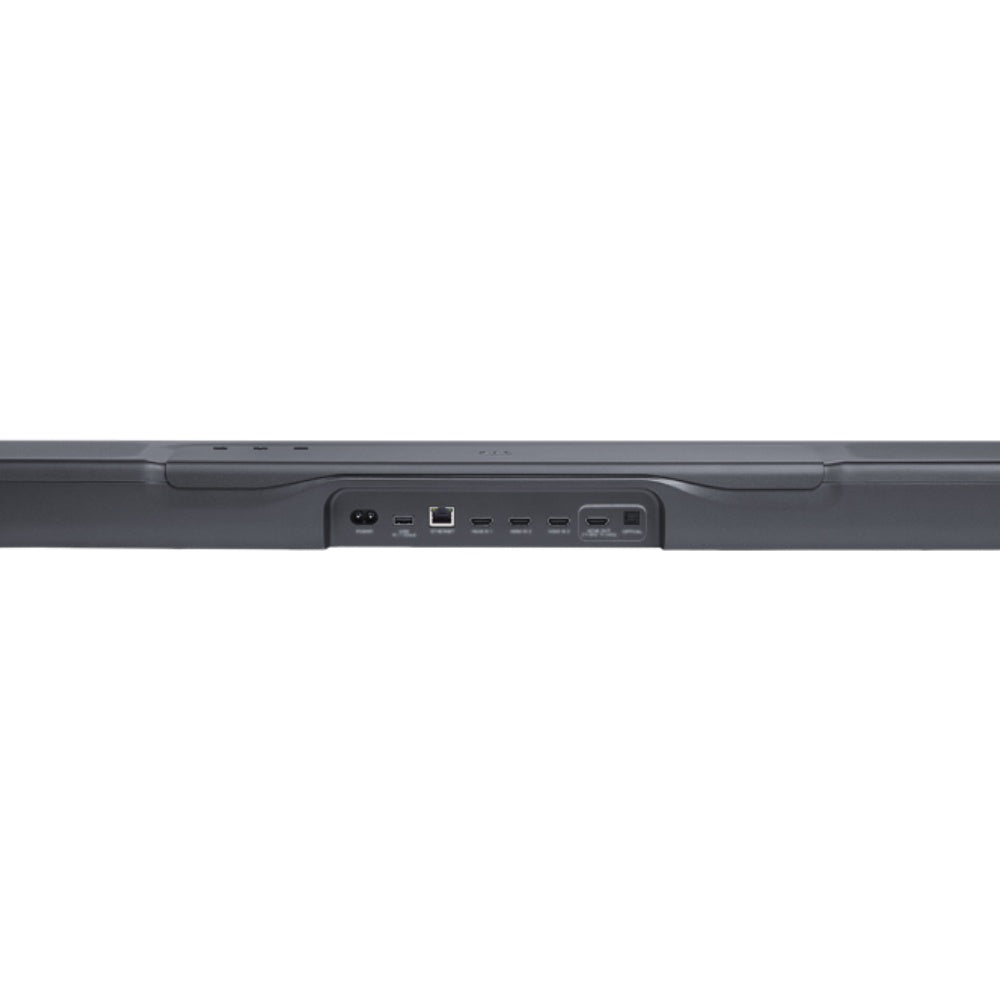

Control and Connection Specifications

USB port Type A

USB rating 5V DC, 0.5A

Supporting file format MP3

MP3 codec MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate 16 - 48 kHz

MP3 bitrate 80 - 320 kpbs

Bluetooth version Main bar - 5.0, Detachable surround speaker - 5.2

Bluetooth profile Main bar - A2DP 1.2 and AVRCP 1.5, Detachable surround speaker - A2DP 1.3 and AVRCP 1.6

Bluetooth transmitter frequency range 2400MHz – 2483.5MHz

Bluetooth transmitter power <15dBm (EIRP)

Wi-Fi network IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

2.4G Wi-Fi transmitter frequency range 2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)

2.4G Wi-Fi transmitter power < 20dBm (EIRP)

5G Wi-Fi transmitter frequency range 5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz

5G Wi-Fi transmitter power 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)

2.4G wireless frequency range 2406 - 2474MHz

2.4G wireless power ＜10dBm (EIRP）

Battery

Lithium battery 3.635V, 6600 mAh

Detachable surround speaker playtime up to 12 Hours (may vary according to content type and volume level)

Video Specifications

HDMI video input 3

HDMI video output (with Enhanced Audio Return Channel, eARC) 1

HDMI HDCP version 2.3

HDR pass through HDR10, Dolby Vision

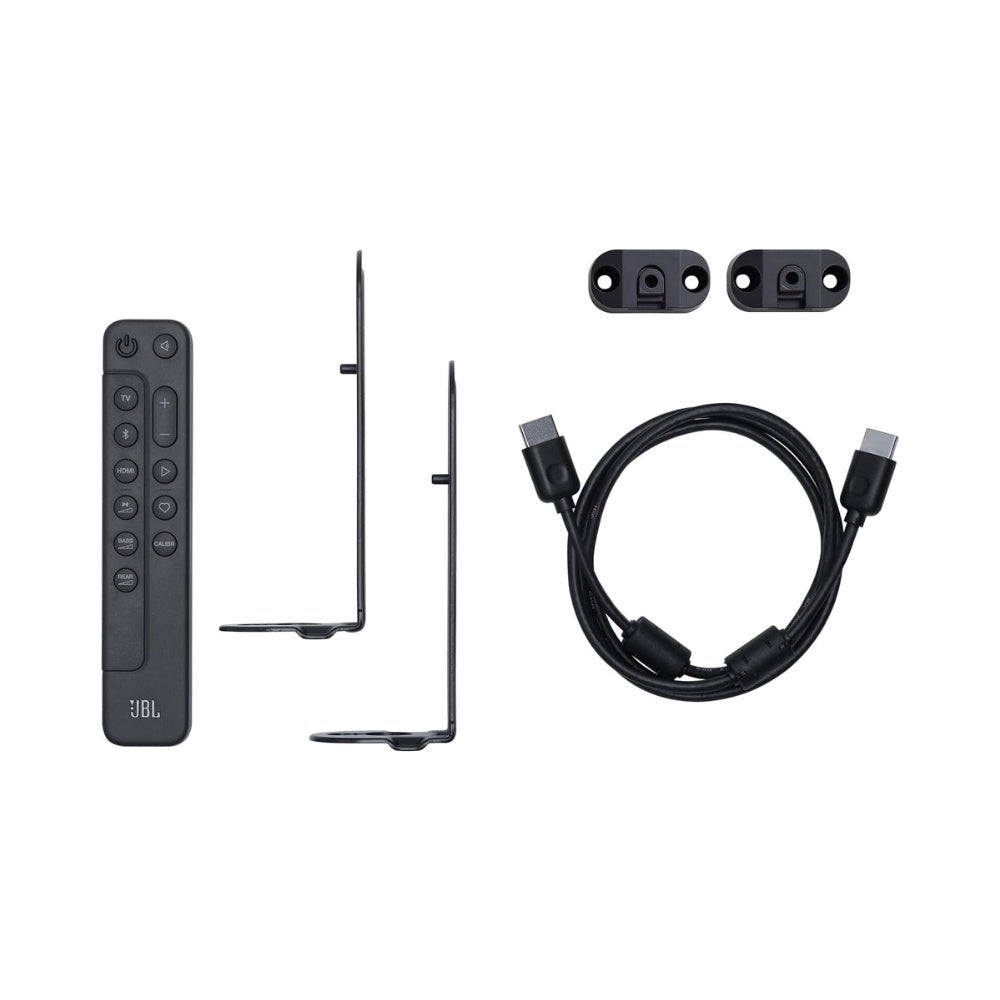

What's in The Box?

1x Main soundbar

2x Detachable wireless surround speakers

1x Wireless subwoofer

Remote control with 2 x batteries

Power cords (up to 8pcs depending on region SKUs)

1 x HDMI cable

2 x L-shape wall-mount bracket (main bar) + 2 x U-shape wall-mount bracket (for surround speakers) kit with screws

2 x Side caps

Quick start guide

Safety instruction and Warranty card

Wall mount template
