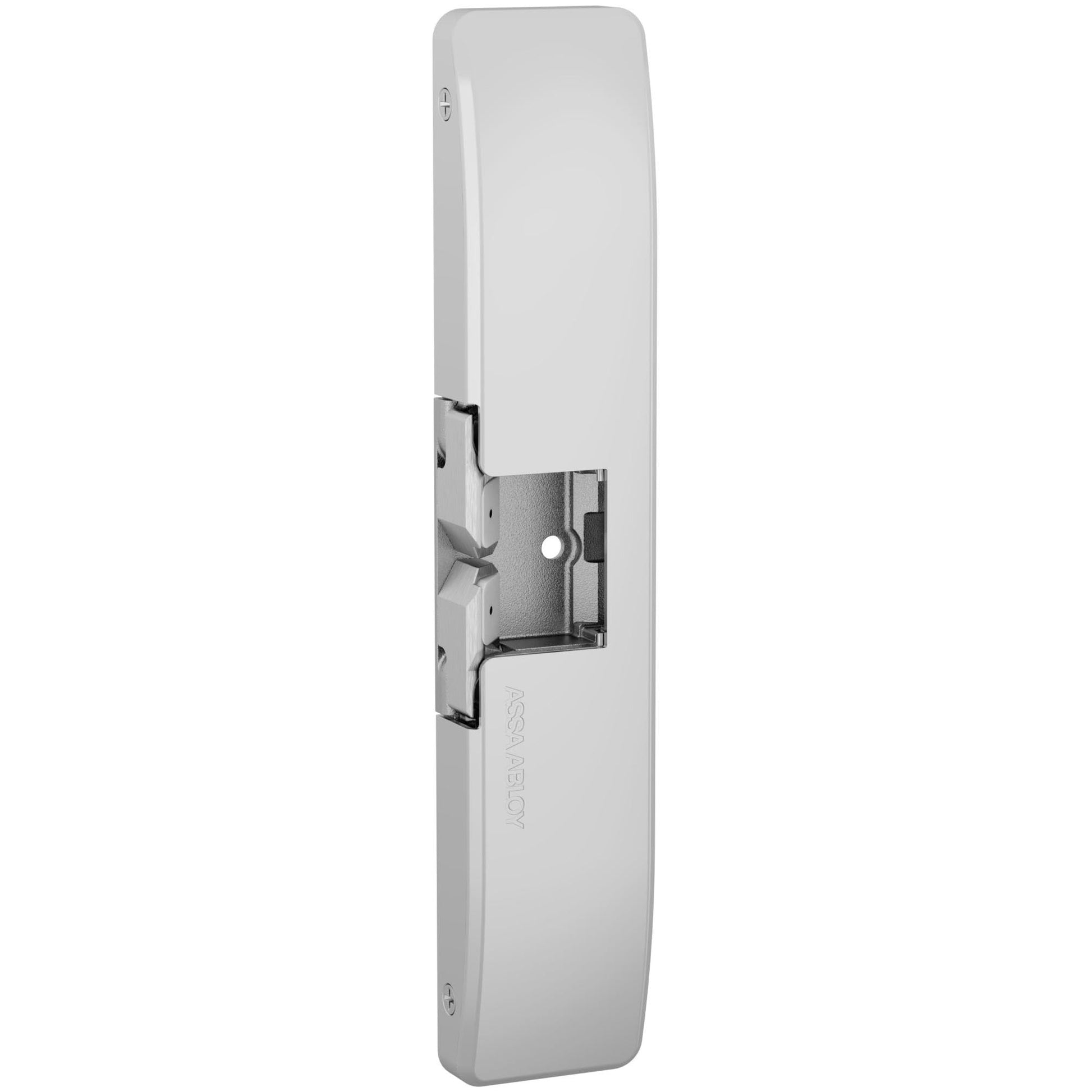

HES 9500 FIRE Rated Electric Strike, Surface Mounted, Works with Rim exit Devices up to 3/4" Throw latchbolt, Satin Stainless Steel (630), Dual Voltage (12/24 VDC/VAC)

Brand: HES Hardware - Assa Abloy

Color: Satin Stainless Steel (630)

Features:

• HES 9500 Surface Mounted Electric Strike, 3 HOUR Fire Rated.
• Works with rim exit devices up to 3/4" throw Pullman latchbolt
• The 9500 exceeds grade-1 standards for strength and performance. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into FIRE-RATED frames.
• SecuriCare five-year, no fault, no questions asked warranty.
• TESTED & CERTIFIED. Easy Installation.

Details: The 9500 Series is a 3 hour FIRE RATED, surface mounted electric strike designed to accommodate rim exit devices with a ¾” Pullman latch. All components are completely encased within its ¾” thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover.

The 9500 exceeds grade-1 standards for strength and performance. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames.

STANDARD FEATURES:
• HES 9500 Surface Mounted Electric Strike Works with rim exit devices up to 3/4" throw Pullman latchbolt,
• Installs in metal or wood frames,
• Separate base and decorative cover for easy adjustments,
• Stainless steel construction,
• Tamper resistant,
• Static strength 1,500 lbs.
• Dynamic strength 70 ft-lbs.
• Endurance 1,000,000 cycles,
• Field selectable fail safe/fail secure,
• Horizontal adjustability,
• Non-handed,
• Internally mounted solenoid.
•COLOR: 630 Satin Stainless Steel.

ELECTRICAL: (DC Continuous Duty): Dual voltage 12/24 VDC 450 mA at 12 VDC (.45 AMPS) /250 mA at 24 VDC (.25 AMPS).

TESTED & CERTIFIED: UL 10C fire-rated, 3 hour (fail secure) CAN4-S104 (ULC-S104) fire door conformant WHI fire door listed UL 1034 burglary-resistant listed and suitable for outdoor use UL 294 listed UL 305 listed ANSI/BHMA A156.31, Grade 1 (#E09371, #E09372, #E09373) NFPA-252 fire door conformant ASTM-E152 fire door conformant California Fire Marshall listed NFPA 80-07 compliant RoHS compliant

WARRANTY:
SecuriCare five-year, no-fault, no questions asked.

EAN: 0736530884215

Package Dimensions: 9.7 x 3.3 x 2.3 inches

Binding: Tools & Home Improvement

Part Number: HES 9500-12/24D-630

model number: HES 9500-12/24D-630
